Chapter 10 Lab 9: Advanced ggplot2 - Facets, Themes, and Layouts

Objectives:

  1. To build scatterplots for continuous-vs-continuous relationships
  2. To build boxplots and violin plots for distributions across categories
  3. To refine axes, scales, and custom themes
  4. To use facetting to display complex, multi-panel data sets

In Lab 4 we covered histograms and bar plots. Today we go further: relationships between continuous variables, distributions across groups, and multi-panel layouts — the kind of polish you’ll want for a scientific paper or presentation.

10.1 Scatterplots

Scatterplots represent continuous vs. continuous variables, and are used to look for correlations.

library(ggplot2)
library(palmerpenguins)
data(penguins)

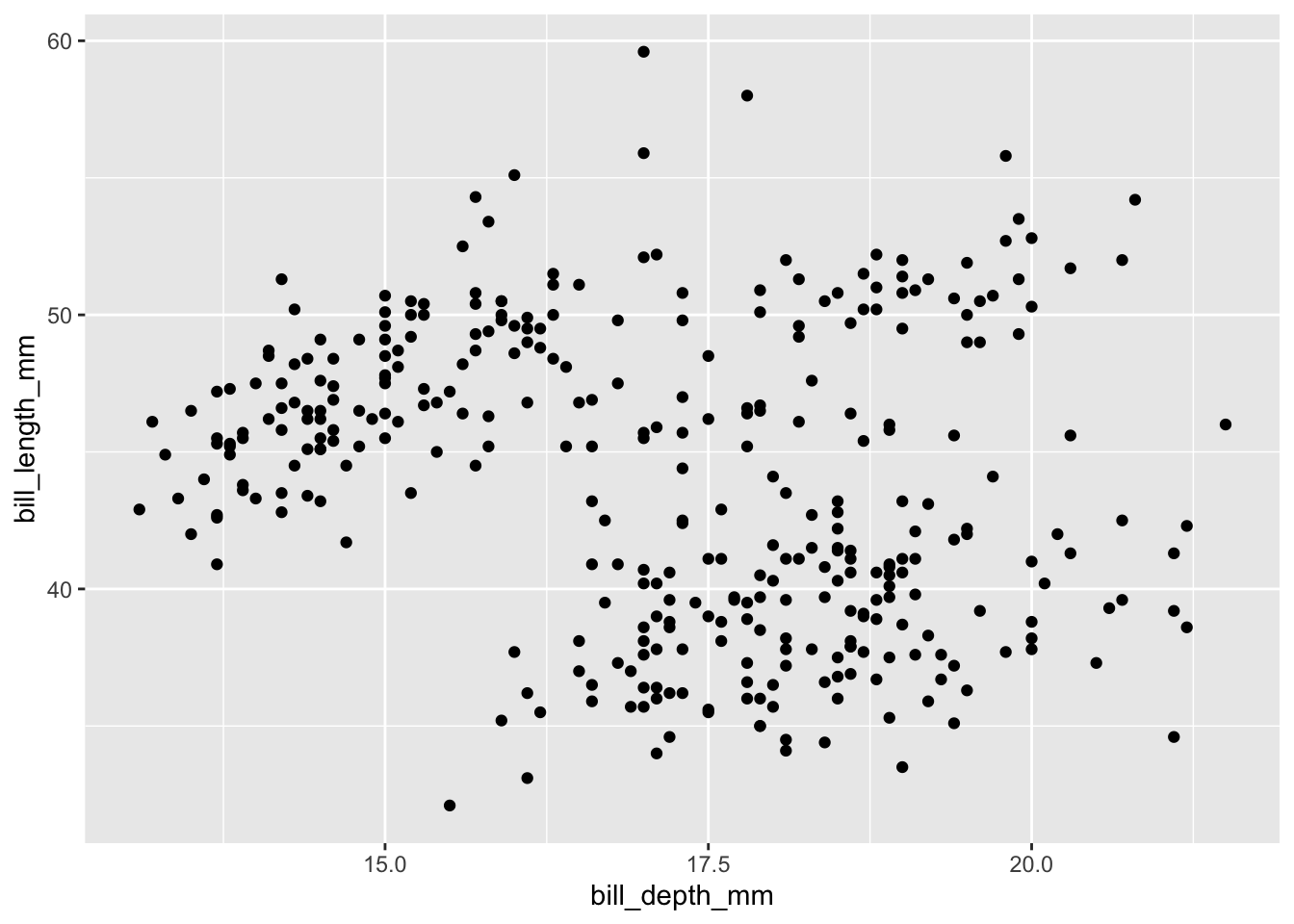

ggplot(data = penguins, aes(x=bill_depth_mm, y=bill_length_mm)) + geom_point()
## Warning: Removed 2 rows containing missing values or values outside the scale range (`geom_point()`).

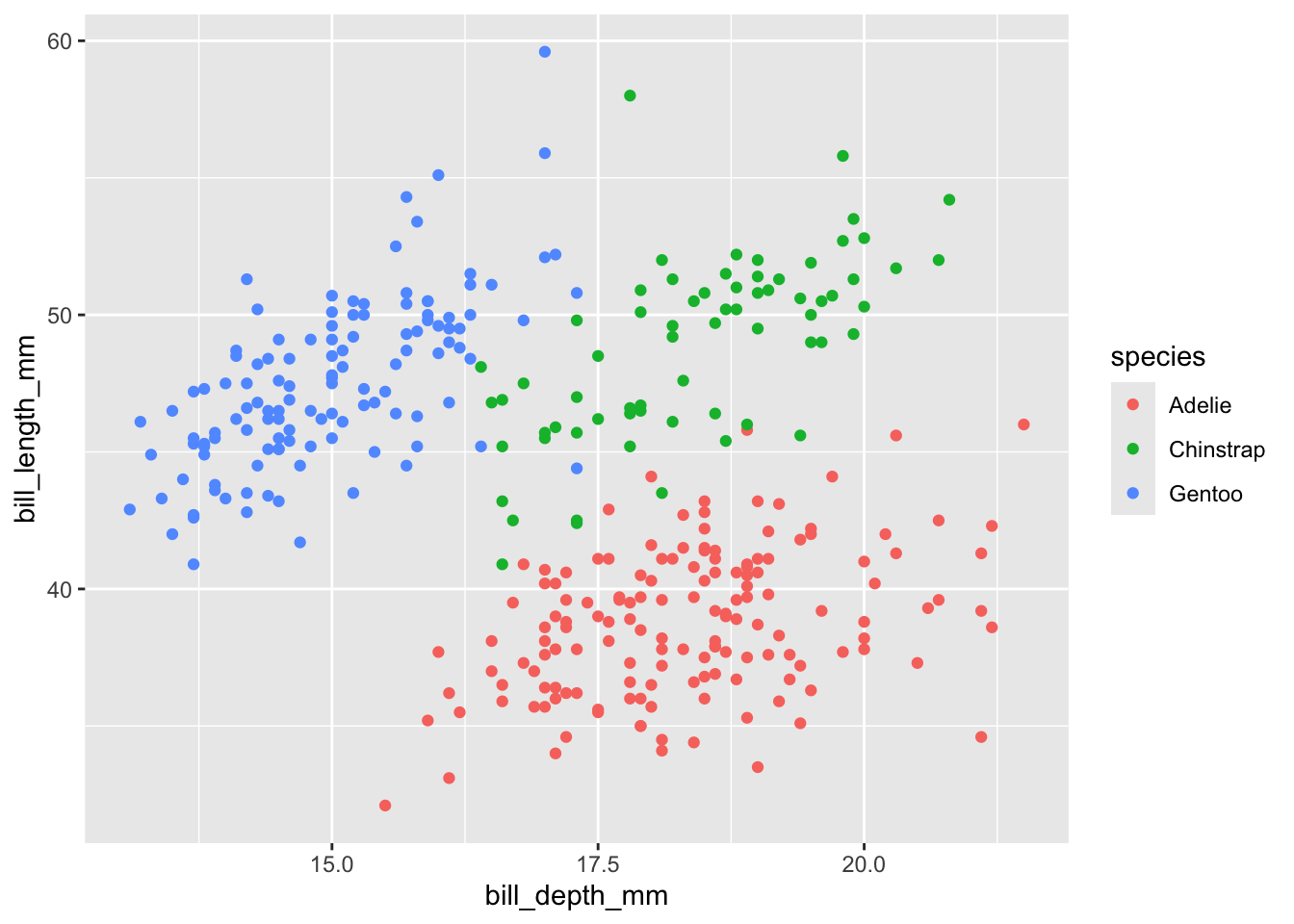

This is hard to read as-is — no clear trend appears. Coloring by a category often reveals a hidden pattern (this is called Simpson’s Paradox, when a trend appears, disappears, or reverses when a grouping variable is introduced):

ggplot(data = penguins, aes(x=bill_depth_mm, y=bill_length_mm, color=species)) + geom_point()
## Warning: Removed 2 rows containing missing values or values outside the scale range (`geom_point()`).

Question 1

  • Build a scatterplot of flipper_length_mm (x) versus body_mass_g (y), colored by species
  • Is there a positive, negative, or no relationship? Does it differ by species?

10.2 Boxplots and violin plots

These combine a histogram-like view with a categorical x-axis, illustrating the distribution of a continuous variable across categories.

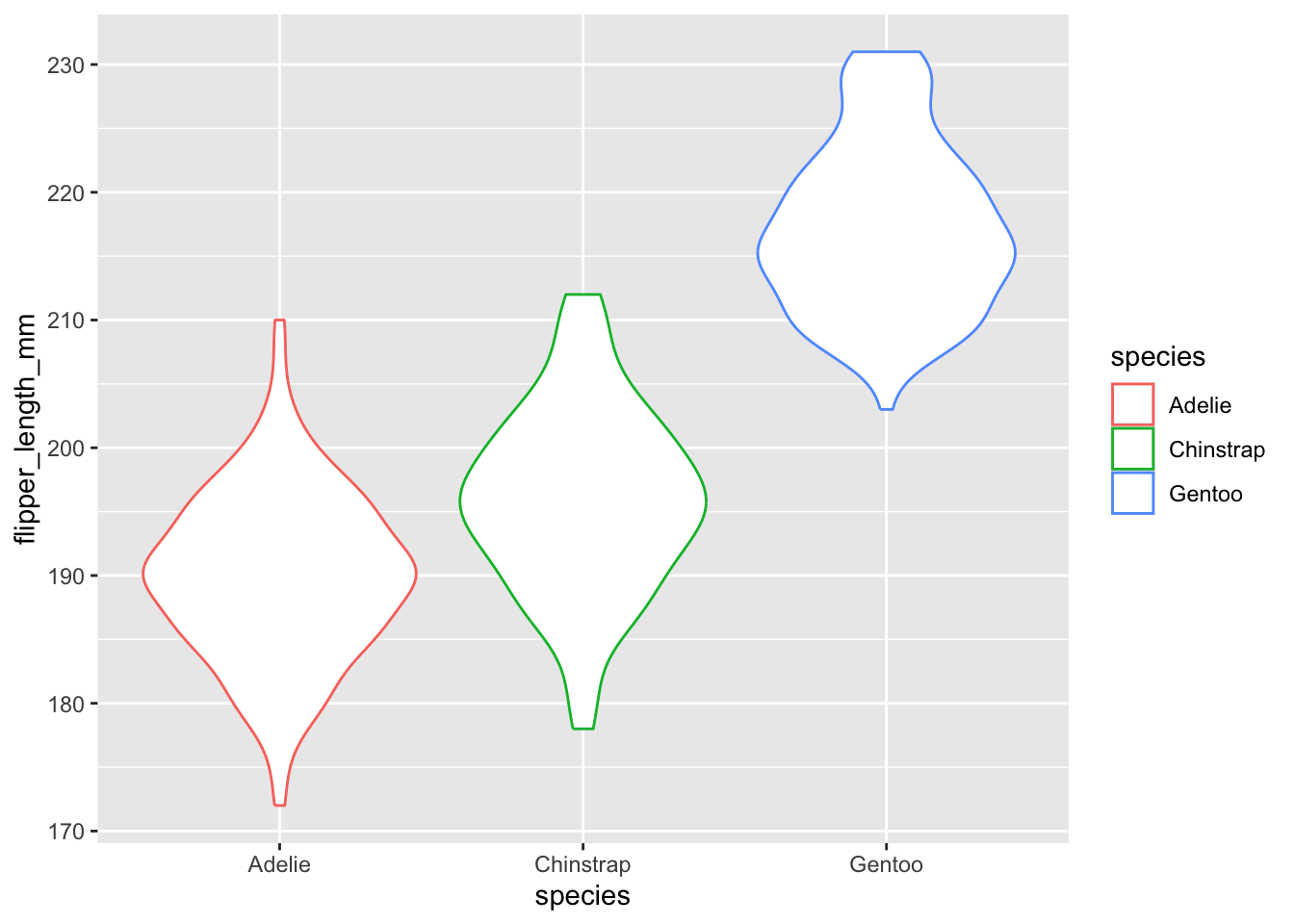

ggplot(data = penguins, aes(x=species, y=flipper_length_mm, color=species)) + geom_violin()
## Warning: Removed 2 rows containing non-finite outside the scale range (`stat_ydensity()`).

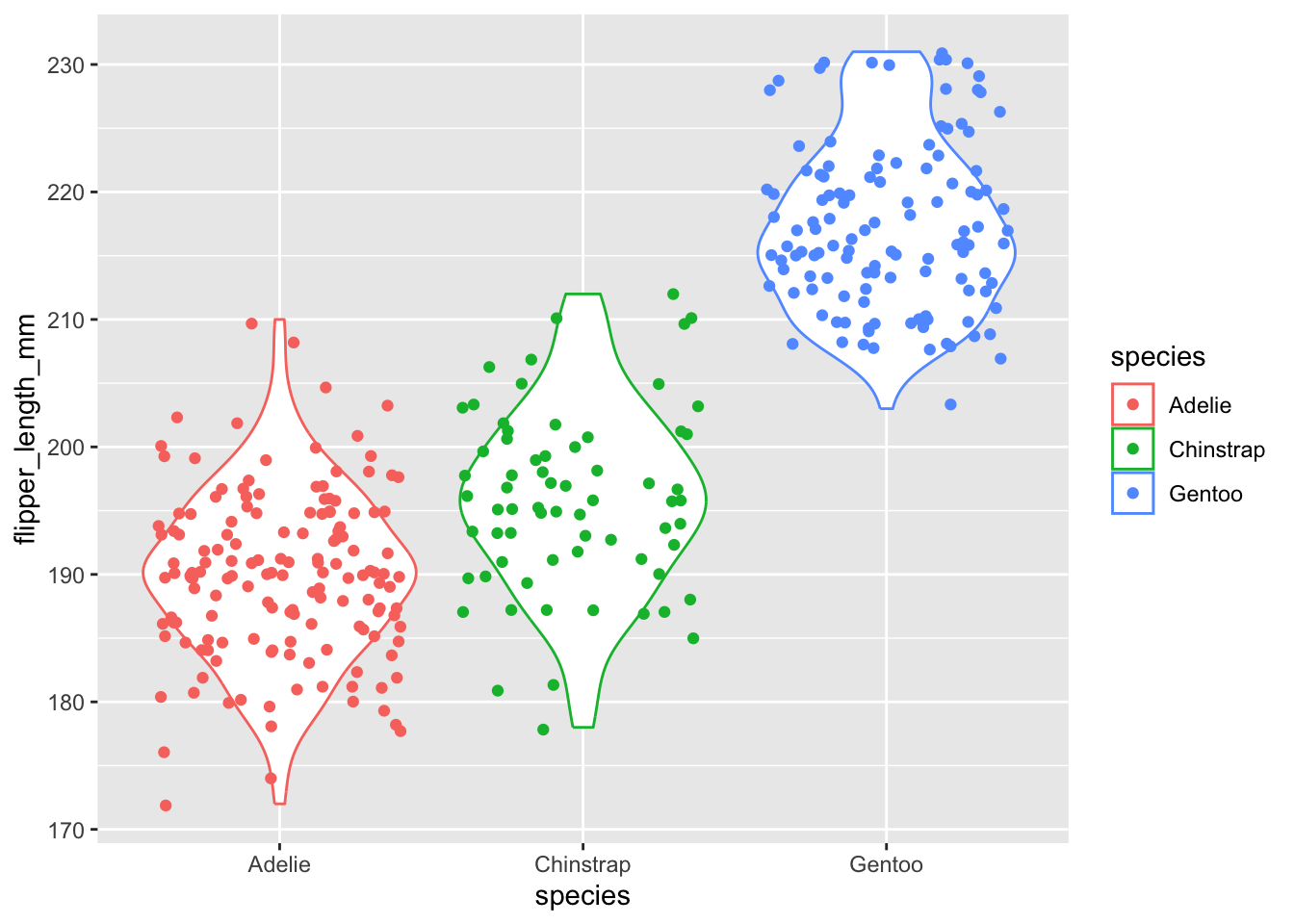

Add the raw data points with geom_jitter():

ggplot(data = penguins, aes(x=species, y=flipper_length_mm, color=species)) + geom_violin() + geom_jitter()
## Warning: Removed 2 rows containing non-finite outside the scale range (`stat_ydensity()`).
## Warning: Removed 2 rows containing missing values or values outside the scale range (`geom_point()`).

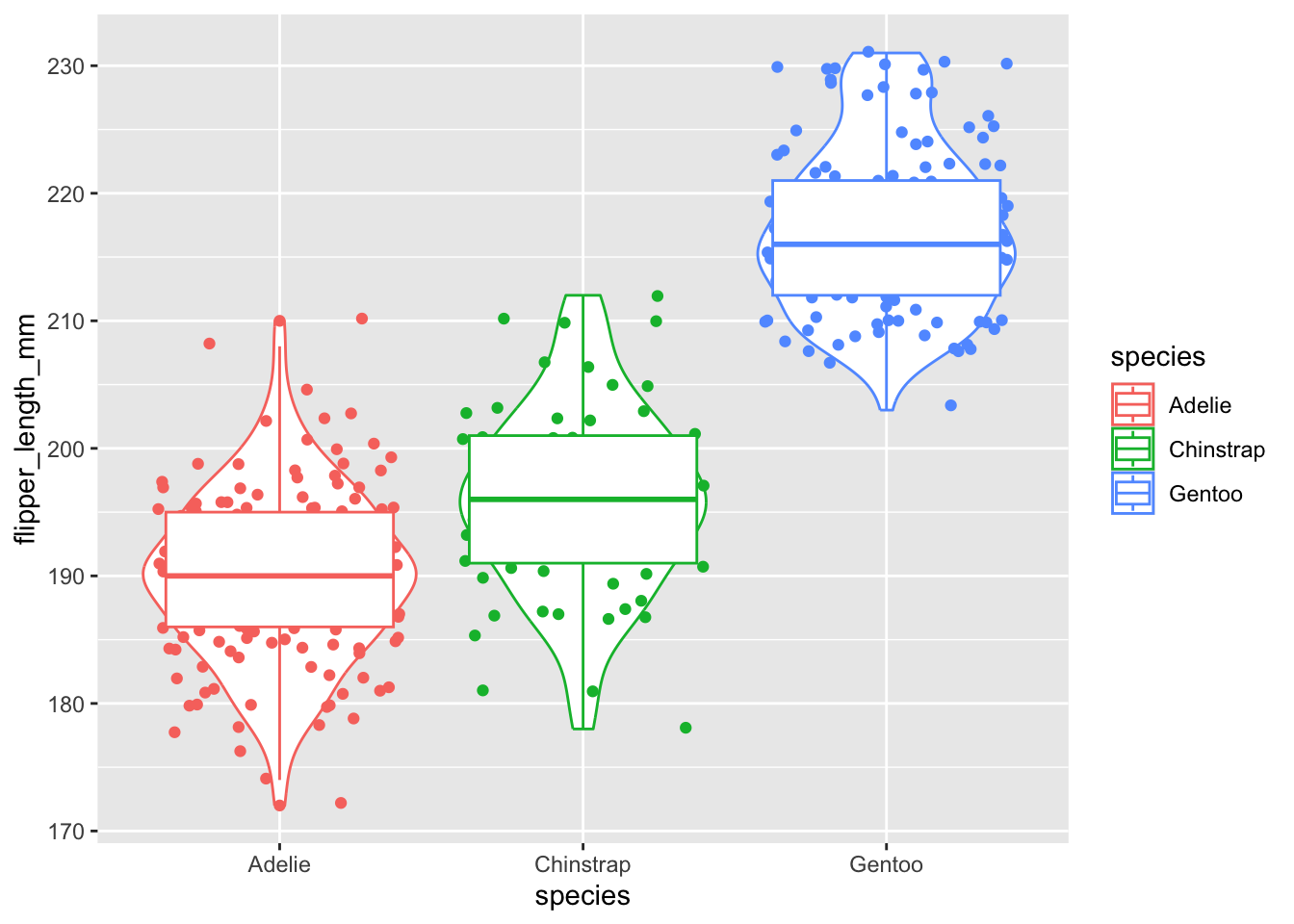

Add a boxplot on top to summarize the median and quartiles:

ggplot(data = penguins, aes(x=species, y=flipper_length_mm, color=species)) + geom_violin() + geom_jitter() + geom_boxplot()
## Warning: Removed 2 rows containing non-finite outside the scale range (`stat_ydensity()`).
## Warning: Removed 2 rows containing non-finite outside the scale range (`stat_boxplot()`).
## Warning: Removed 2 rows containing missing values or values outside the scale range (`geom_point()`).

The thick middle line is the median; the box edges are the 25th and 75th percentiles; the whiskers approximate a 95% range for comparing medians.

Question 2

  • Build a boxplot of bill_length_mm across species
  • Which species has the widest spread (most variable) bill length? Which has the narrowest?
  • Connect this back to Lab 6: if you ran an ANOVA on this variable, would you predict a significant result based on this plot alone? Why?

10.3 Facetting: multiple panels for complex data

Facetting splits one plot into a grid of small panels, one per category — extremely useful for comparing patterns across many groups at once (e.g., decadal climate trends across multiple regions).

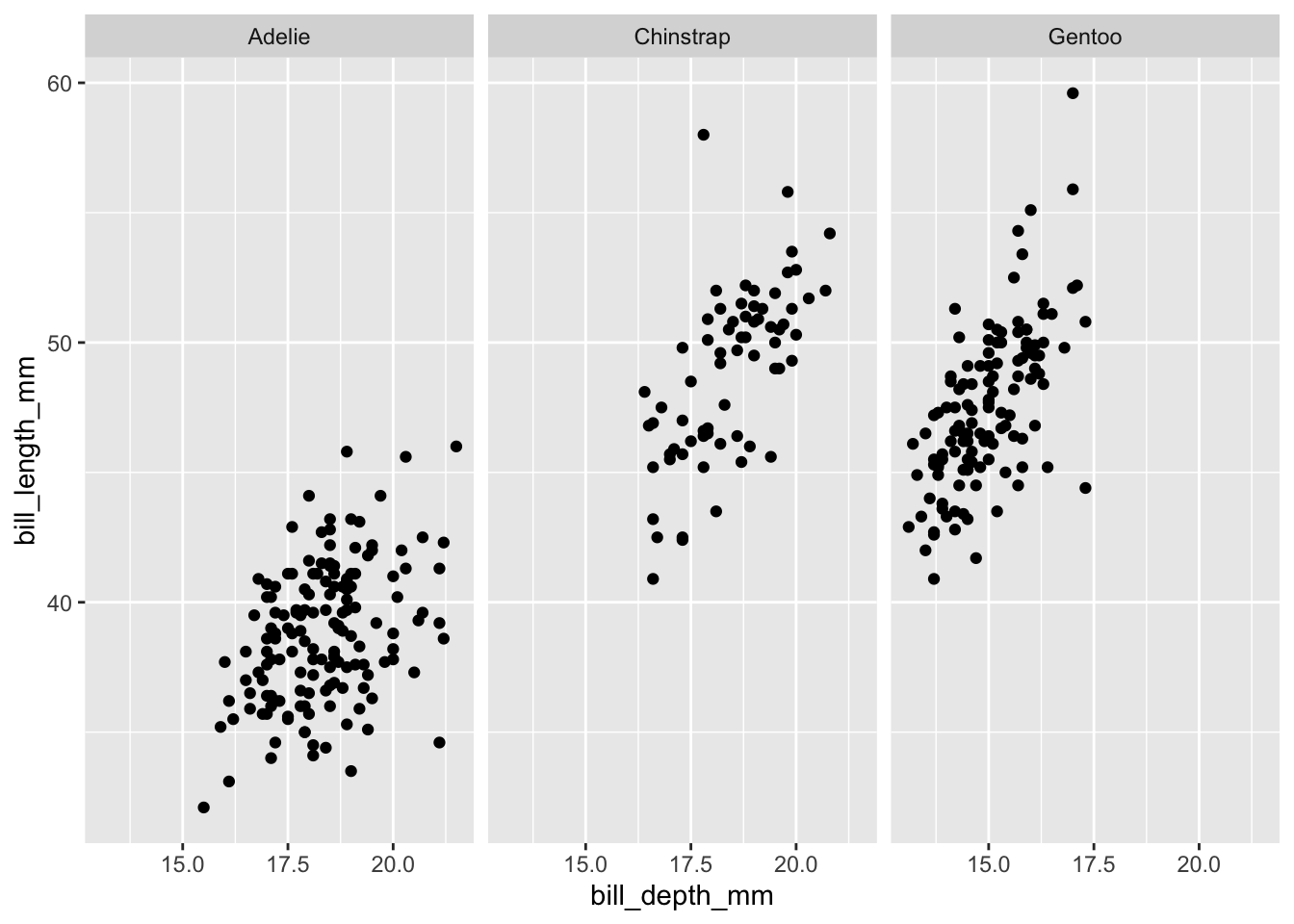

ggplot(data = penguins, aes(x=bill_depth_mm, y=bill_length_mm)) +
  geom_point() +
  facet_wrap(~species)
## Warning: Removed 2 rows containing missing values or values outside the scale range (`geom_point()`).

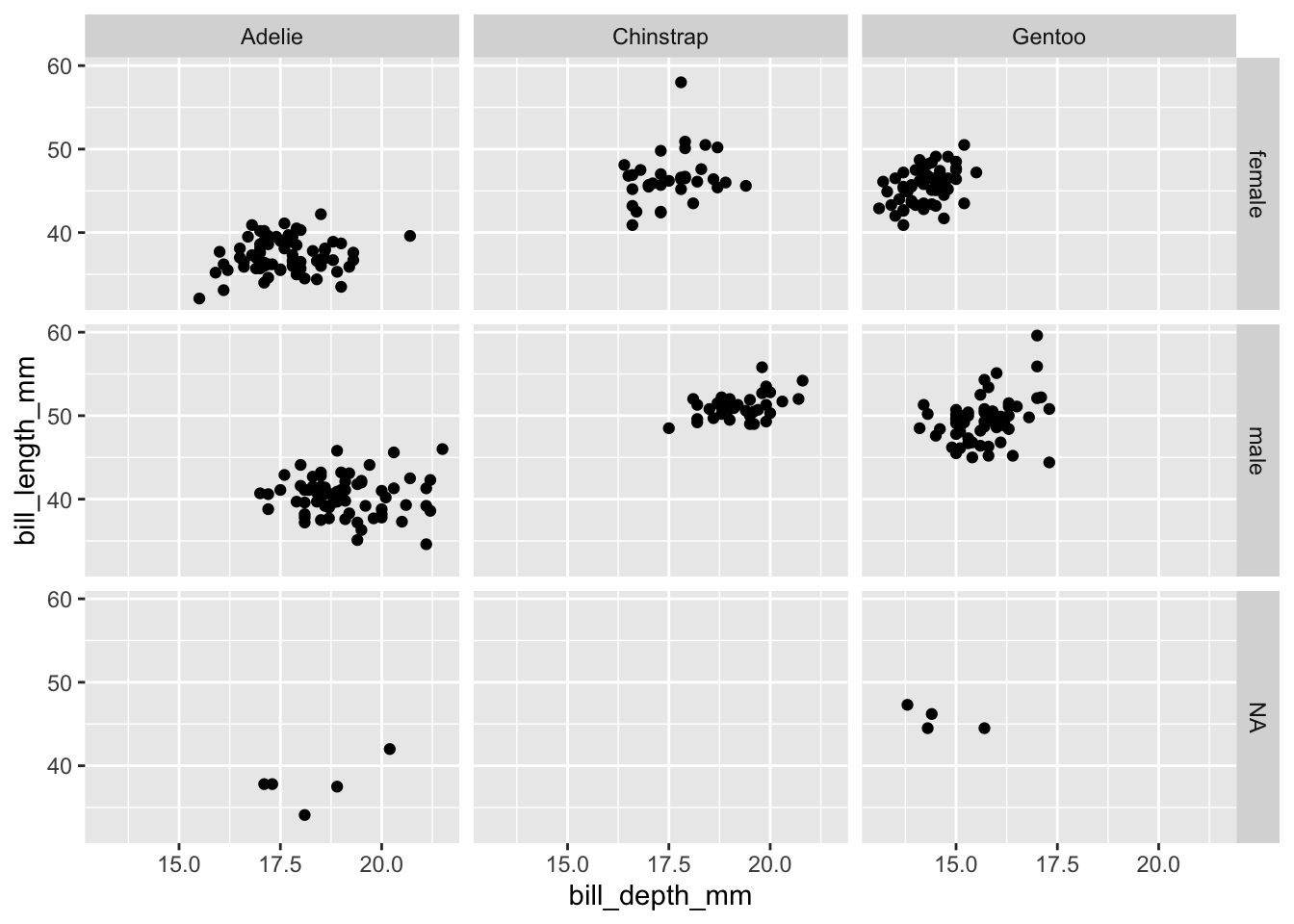

facet_wrap() splits by one variable. facet_grid() splits by two variables at once (rows and columns):

ggplot(data = penguins, aes(x=bill_depth_mm, y=bill_length_mm)) +
  geom_point() +
  facet_grid(sex ~ species)
## Warning: Removed 2 rows containing missing values or values outside the scale range (`geom_point()`).

Question 3

  • Facet the boxplot from Question 2 by island using facet_wrap()
  • Does the pattern you observed in Question 2 hold across all islands, or does it change? Explain.

10.4 Refining axes, scales, and themes

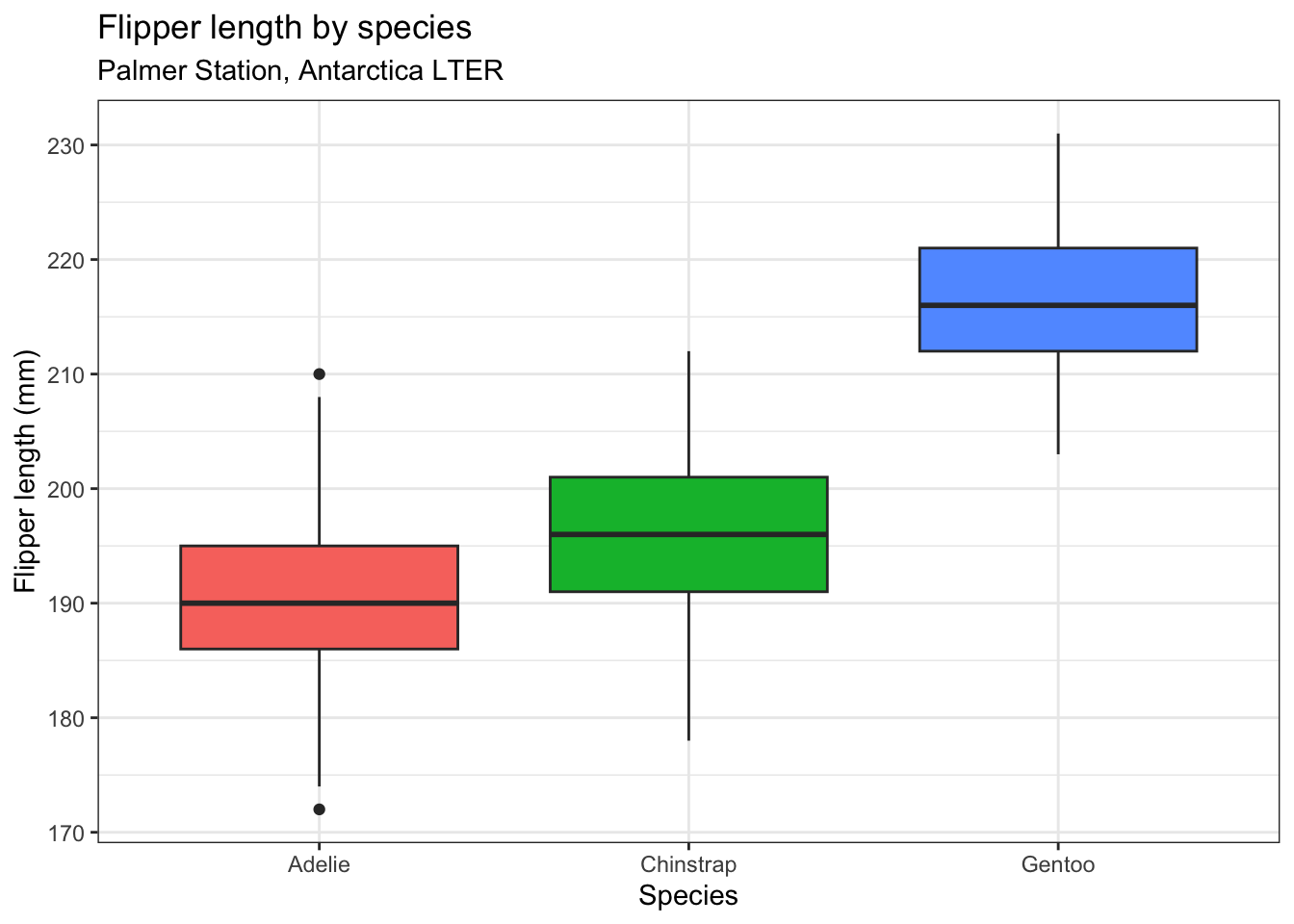

ggplot(data = penguins, aes(x=species, y=flipper_length_mm, fill=species)) +
  geom_boxplot() +
  scale_y_continuous(breaks = seq(170, 235, by = 10)) +
  labs(title = "Flipper length by species",
       subtitle = "Palmer Station, Antarctica LTER",
       x = "Species", y = "Flipper length (mm)") +
  theme_bw() +
  theme(legend.position = "none")
## Warning: Removed 2 rows containing non-finite outside the scale range (`stat_boxplot()`).

  • scale_y_continuous(breaks = ...) controls exactly where axis tick marks appear
  • theme_bw() gives a clean white-background theme, common in publications
  • theme(legend.position = "none") removes a redundant legend (here, color duplicates the x-axis)

Question 4

  • Take your faceted plot from Question 3 and add a title, subtitle, clean axis labels, and a theme of your choice
  • Compare it to the very first, unstyled scatterplot at the top of this lab. In 2-3 sentences, explain what specifically makes the final version more “publication-ready.”
